Premier Mobile Stages.
Ready in Hours.
NZ Stage Hire brings a festival-grade mobile stage trailer to your event, wherever you need it.
Two mobile stages available for hire, from corporate functions and cultural performances right through to major festivals and headline concerts.
The hEADLINE STAGE

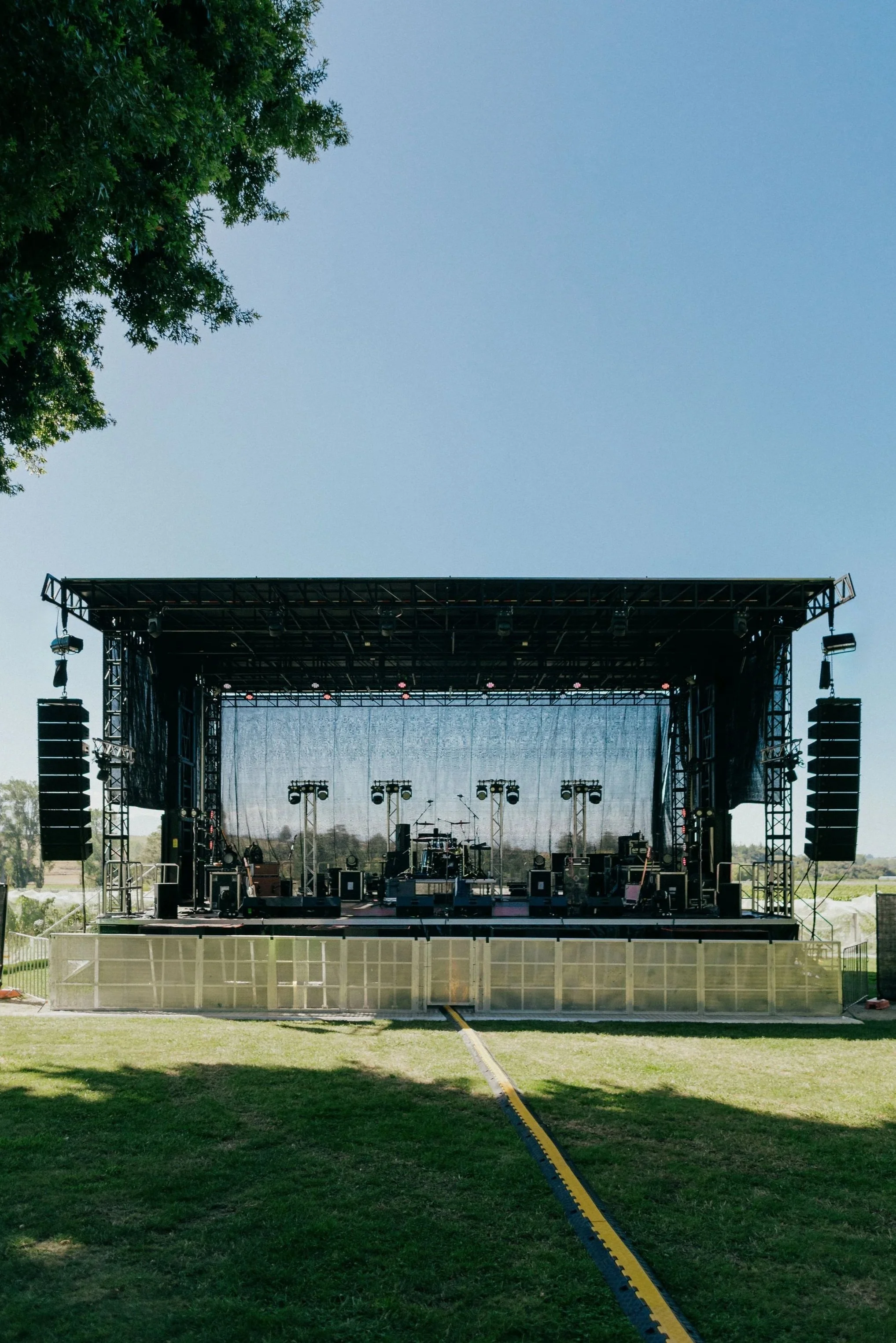

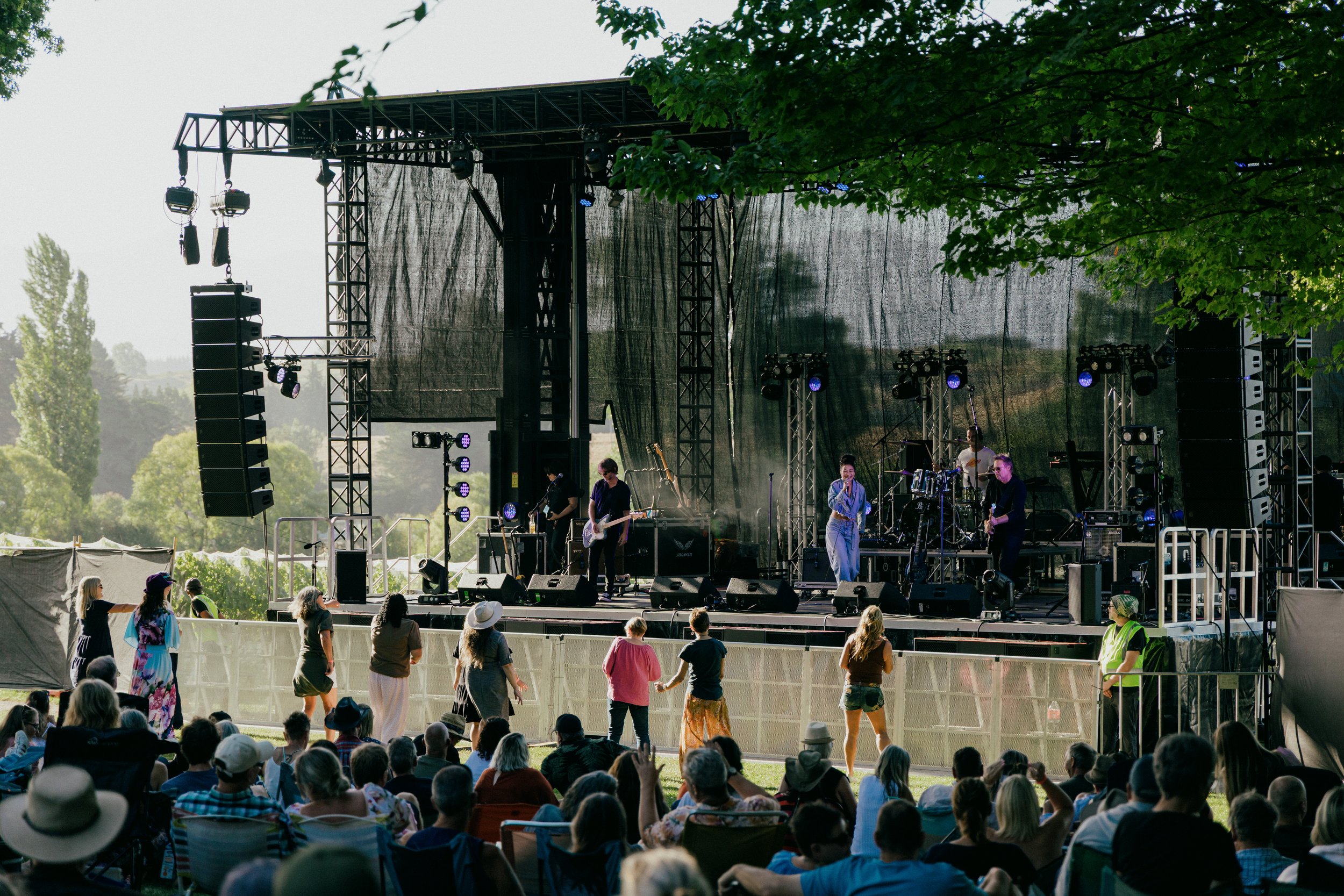

The Headline Stage is a 13.3 metre self-contained hydraulic stage trailer. At 12m × 12m, it's built for large productions.
Festival-scale production, without the week-long build.
It arrives on its own dedicated truck. The entire roof structure is rigged at ground level before the hydraulics raise it to full height, meaning faster setup, safer working conditions, and less time on site for your crew. Rig everything at ground level. Let the hydraulics do the rest. A crew of two to four people has it show-ready in 10 hours.

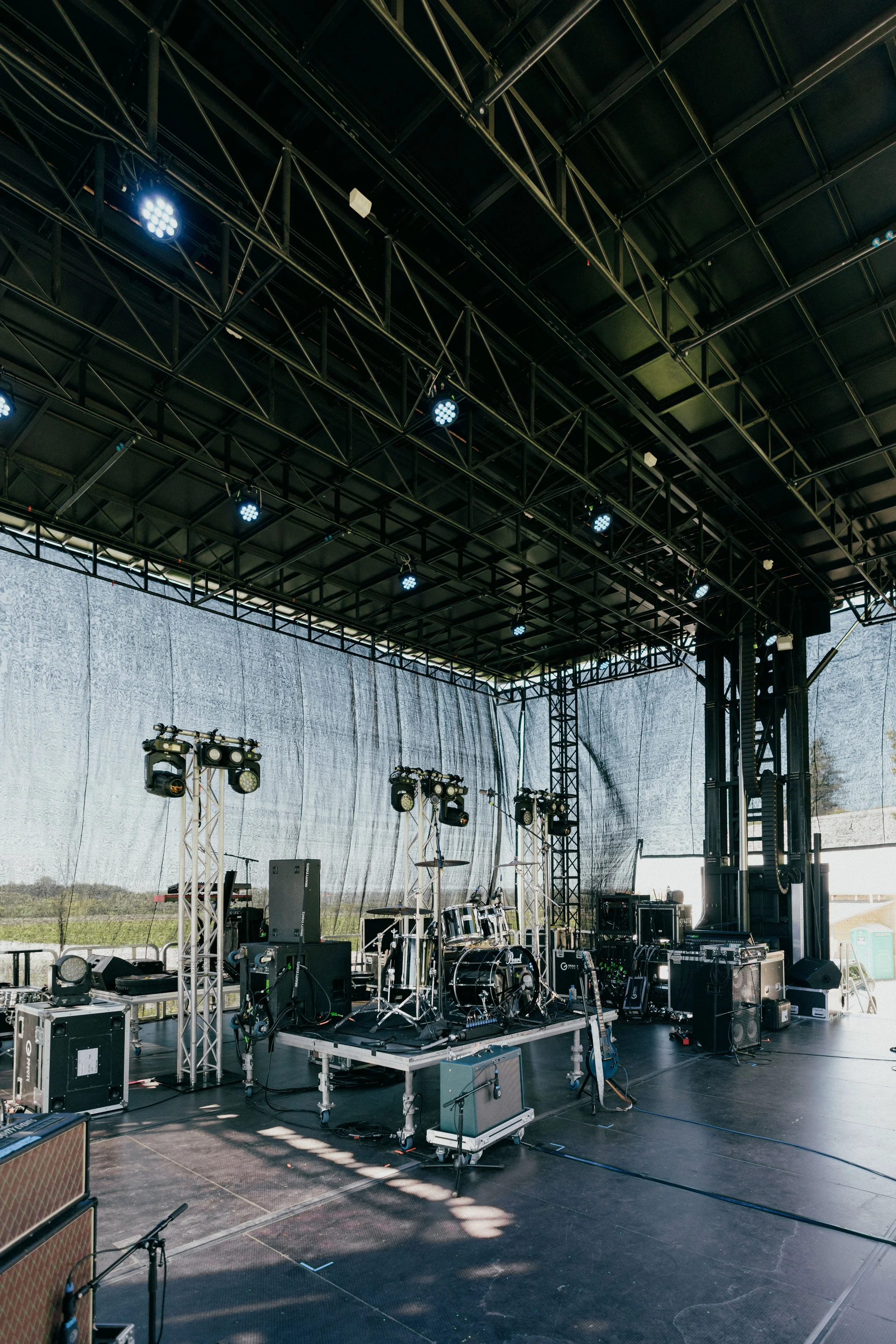

Six metres of clear height from stage floor to roof. Enough for full line arrays, full lighting rigs, and LED screens flown from the structure, not ground-supported.
Built for festivals, major concerts, large-scale cultural events, and productions that need a professional stage. Full production including PA, lighting, and LED screens is available. Get in touch and we'll talk through the options.
Full engineering specifications and compliance documentation available on request.
Key Specs
STAGE AREA
12m x 12m (144m²).
LIGHTING TRUSSES
7 trusses.
ROOF HEIGHT
Roof height: 6m from stage floor.
Stage floor height: 1.6m from ground.
WIND RATING
90km/h (NZS1170 assessed).
TOTAL ROOF LOAD
3,500kg across multiple roof trusses.
SET UP TIME
Minimum 4.5 hours for base stage with 2 - 4 crew, plus approximately 1 hour to lift once lighting is loaded.
FRONT AND REAR TRUSS CAPACITY
1,500kg each.
AUDIENCE CAPACITY
2,000 – 30,000 people.
PA CAPACITY PER SIDE
500kg including motor.
TRANSPORT
Self-contained, arrives on its own dedicated truck.
Stage Platform
144M²
capacity per side
500kg
Show ready in
10 hrs
crew required
2 - 4
Configure
Your
Stage
-
Fully enclosed, weatherproof side structures that attach to either side of the stage. Useful covered space for production, artists, or crew.
-

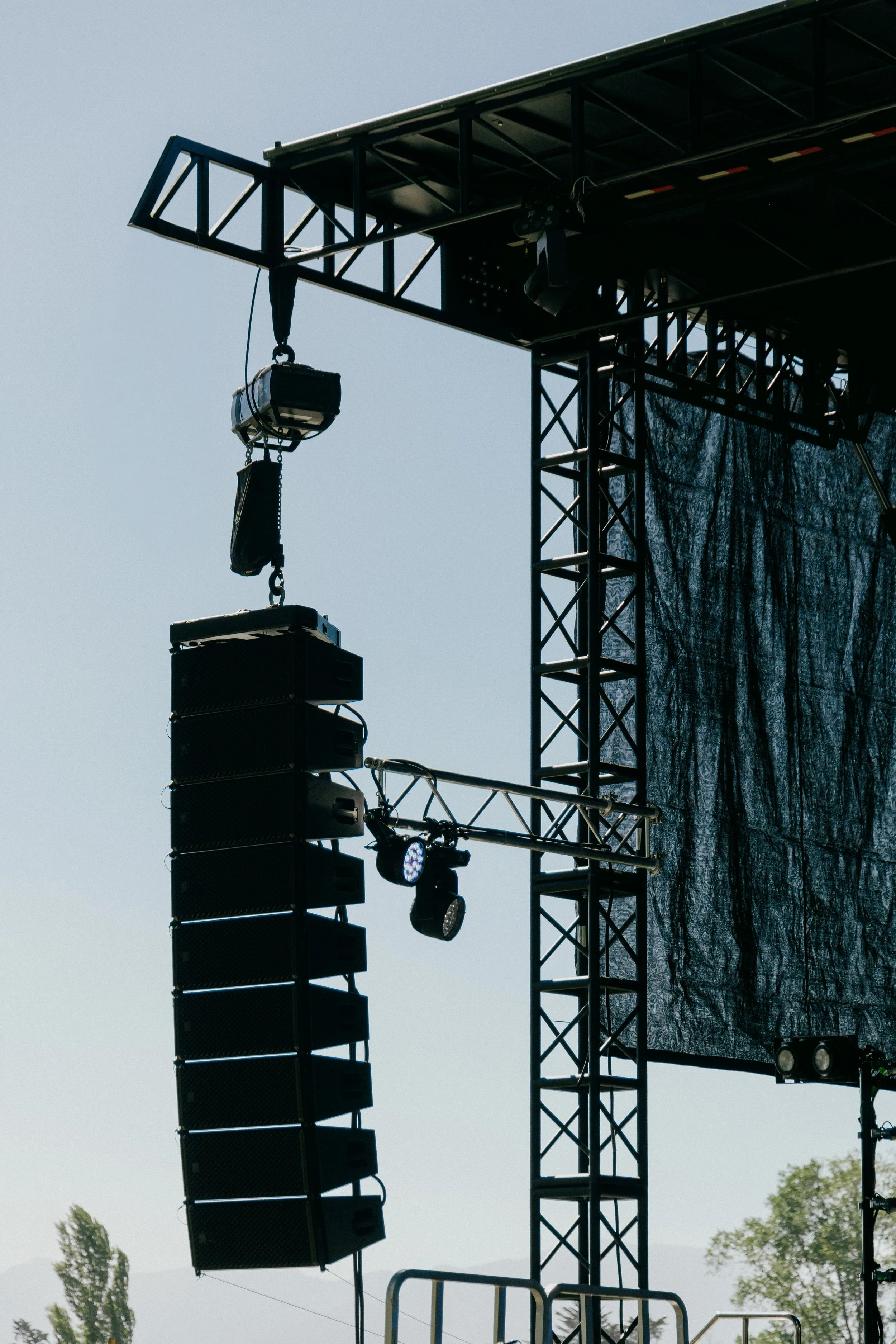

Line arrays can be flown directly from the stage roof. 500kg capacity either side.
-
Extensions for large-format LED screens on their own dedicated truss towers, positioned outside the main roof line on either side of the stage. Ideal for festival-scale audiences who need a clear view from a distance, or for additional PA either side.
-
Get in touch and we'll talk through what we can put together for your event.
The Support STAGE
A capable stage in its own right, well suited to events where the larger ‘Headline Stage’ is more stage than the site or budget calls for.
Its signature curved arc roof reaches 4.3m clearance at centre, a clean, distinctive profile that looks the part at any outdoor event. The stage front is reversible, giving you flexibility on orientation at any site. Manual deployment means no external power is needed to set up. A 2-person crew has it show-ready in 2 hours.
Suited to outdoor festivals, concerts, and community events. A professional stage for events that don't need the full 144m². Full production including PA, lighting, and LED screens is available. Get in touch and we'll talk through the options.
Full engineering specifications and compliance documentation available on request.
Key Specs
STAGE AREA
10m × 6.3m (63m²).
LIGHTING TRUSSES
4 trusses.
ROOF HEIGHT
Roof height from ground: 5.2m – 5.6m at peak / 4.2m – 4.6m at sides (varies with stage floor height setting).
Stage floor height: 0.9m – 1.3m (adjustable).
WIND RATING
110km/h (without wind walls) / 72km/h (with wind walls).
TOTAL ROOF LOAD
800kg (200kg per truss across 4 trusses).
SET UP TIME
25 minutes with a 2-person crew.
FLOOR LOAD
500kg/m².
AUDIENCE CAPACITY
Around 5,000 people.
DEPLOYMENT
Manual / mechanically-assisted. No external power needed.
TRANSPORT
Trailer length: 11.35m (with drawbar).
Trailer weight: 3,400kg.
Stage set up in
2 hrs
crew required
2
Stage Platform Area
63M²
capacity per truss
200kg
-
Fully enclosed, weatherproof side structures that attach to either side of the stage. Useful covered space for production, artists, or crew.
-
Line arrays can be flown directly from the stage roof. 500kg capacity either side.
-
Extensions for large-format LED screens on their own dedicated truss towers, positioned outside the main roof line on either side of the stage. Ideal for festival-scale audiences who need a clear view from a distance, or for additional PA either side.
-
Get in touch and we'll talk through what we can put together for your event.
Configure
Your
stage
In the field.

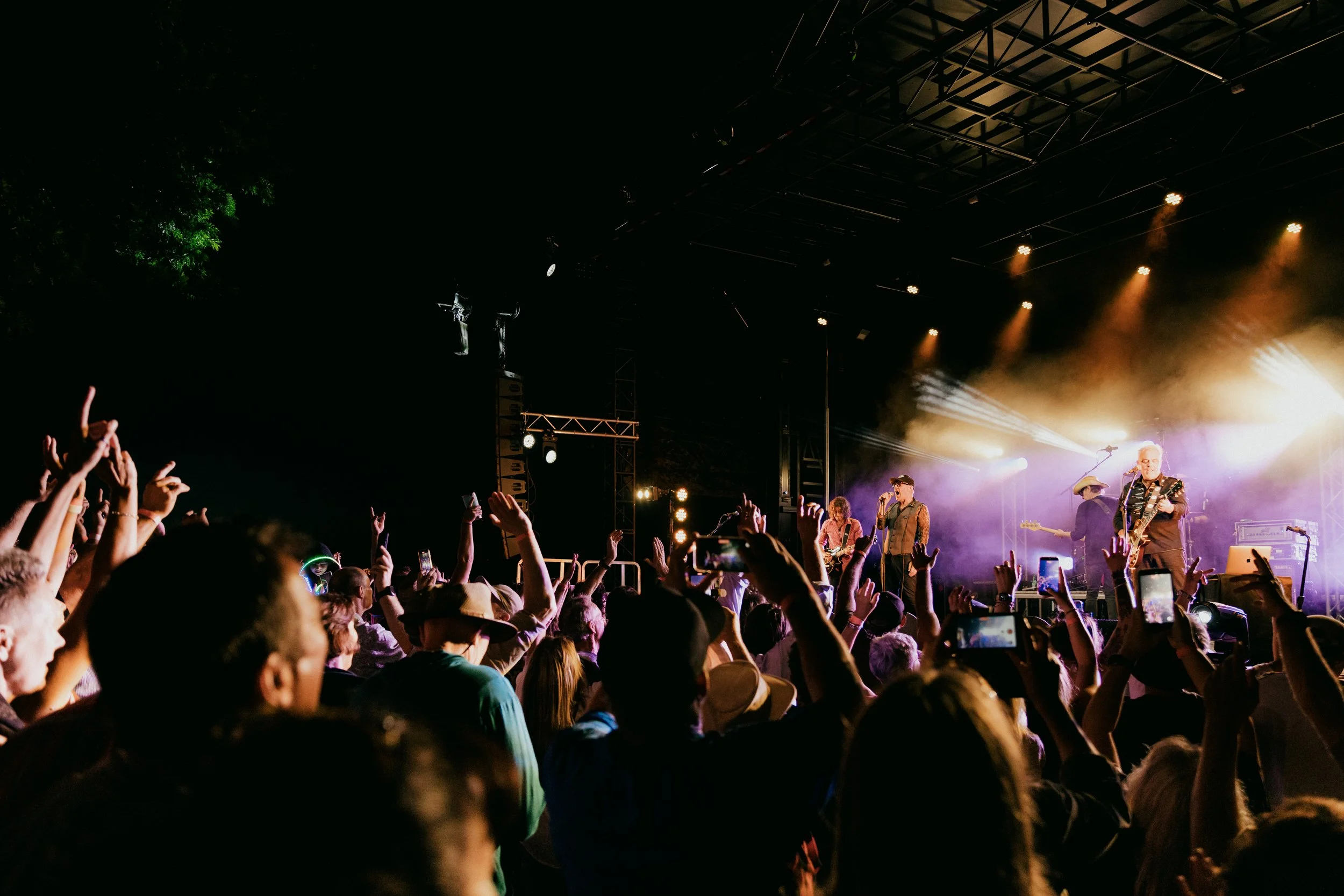

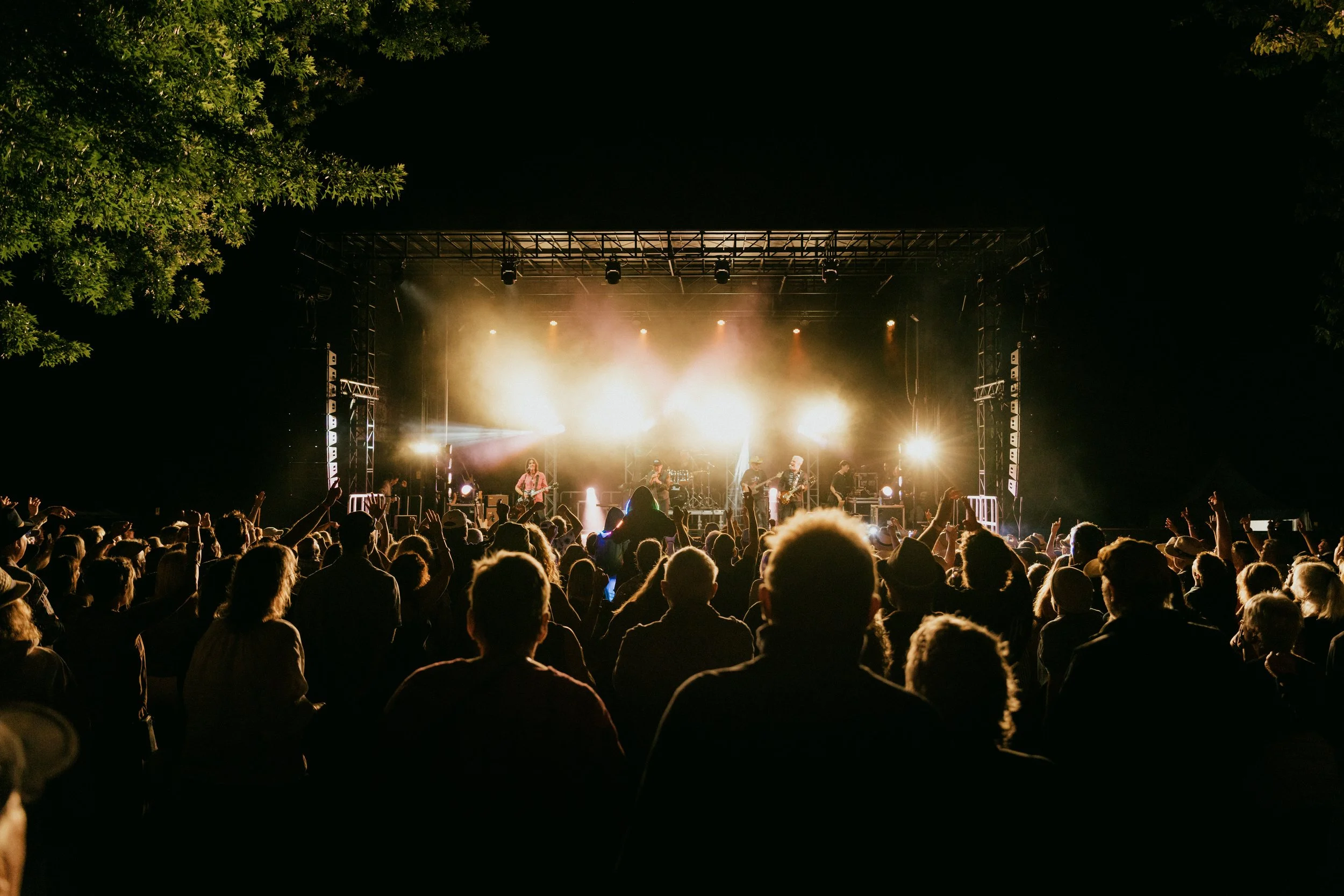

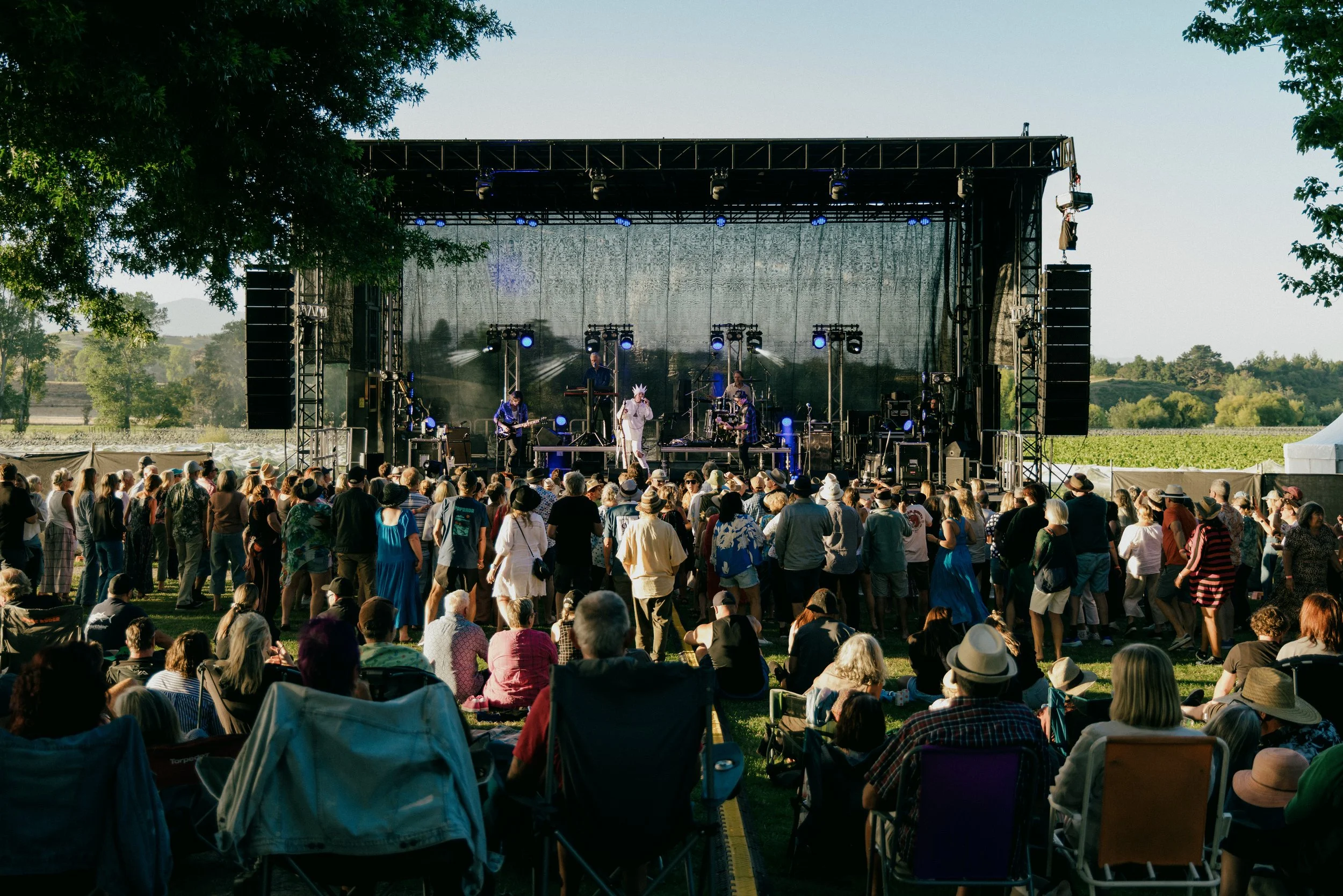

Ready to roll Nelson 2025

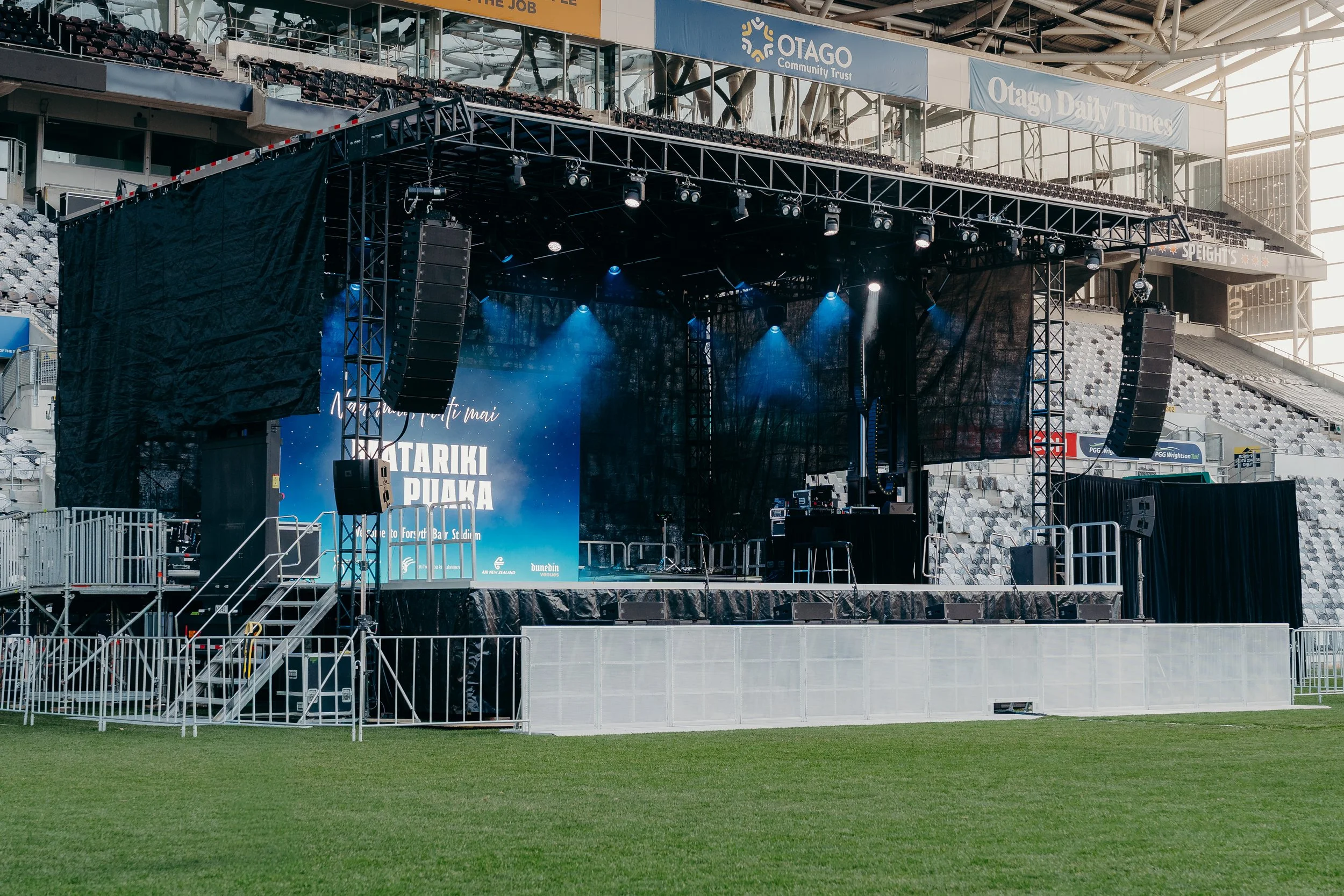

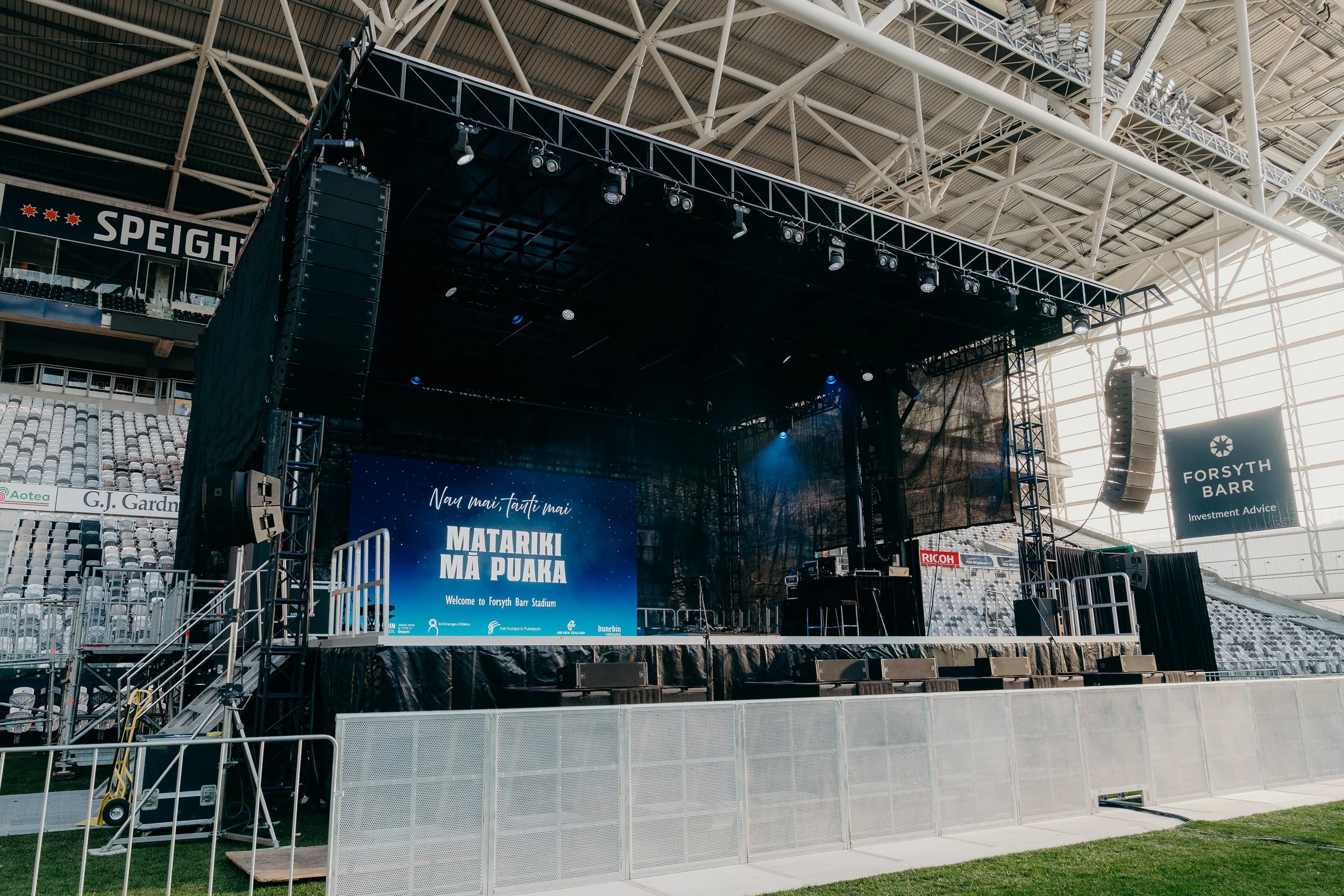

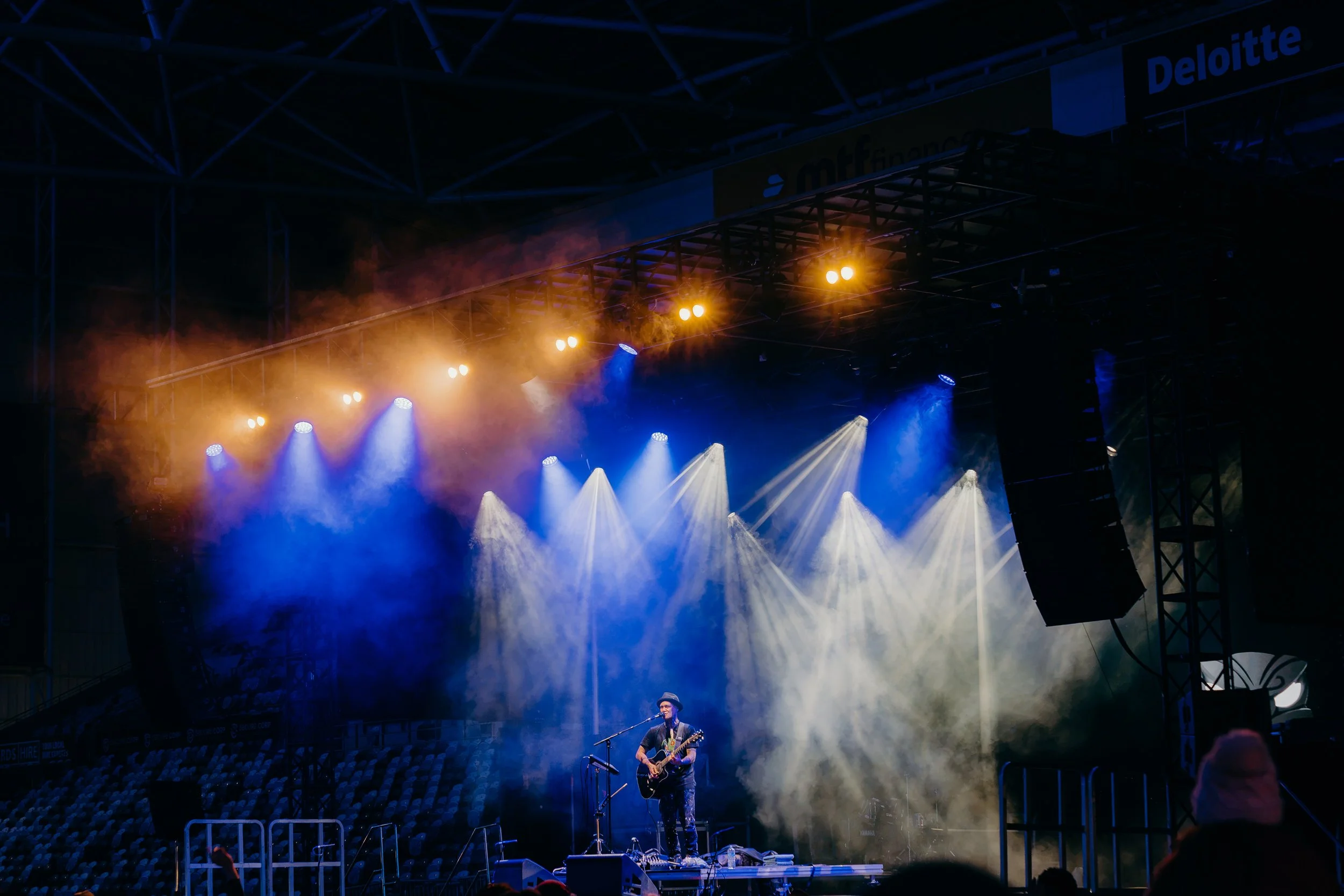

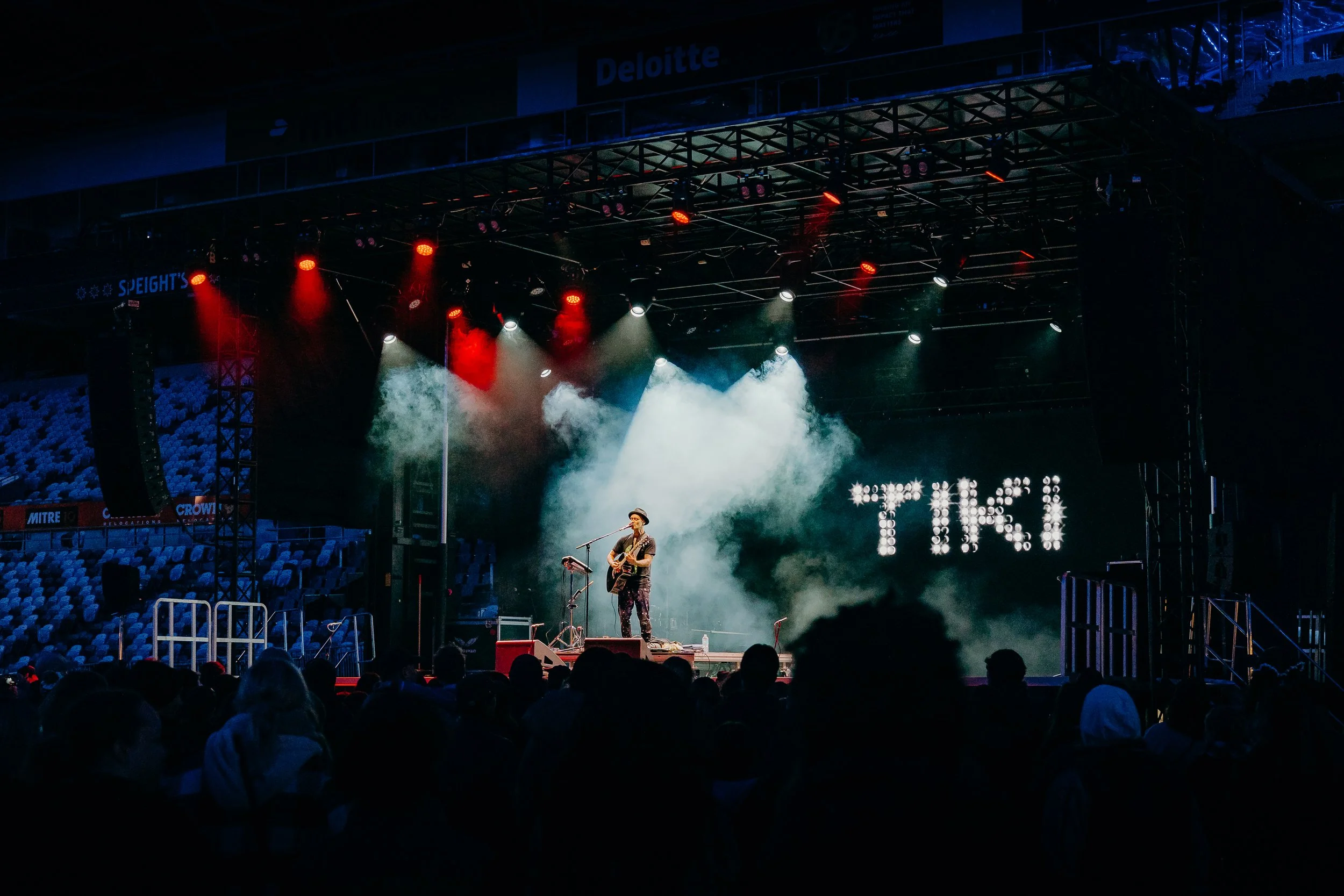

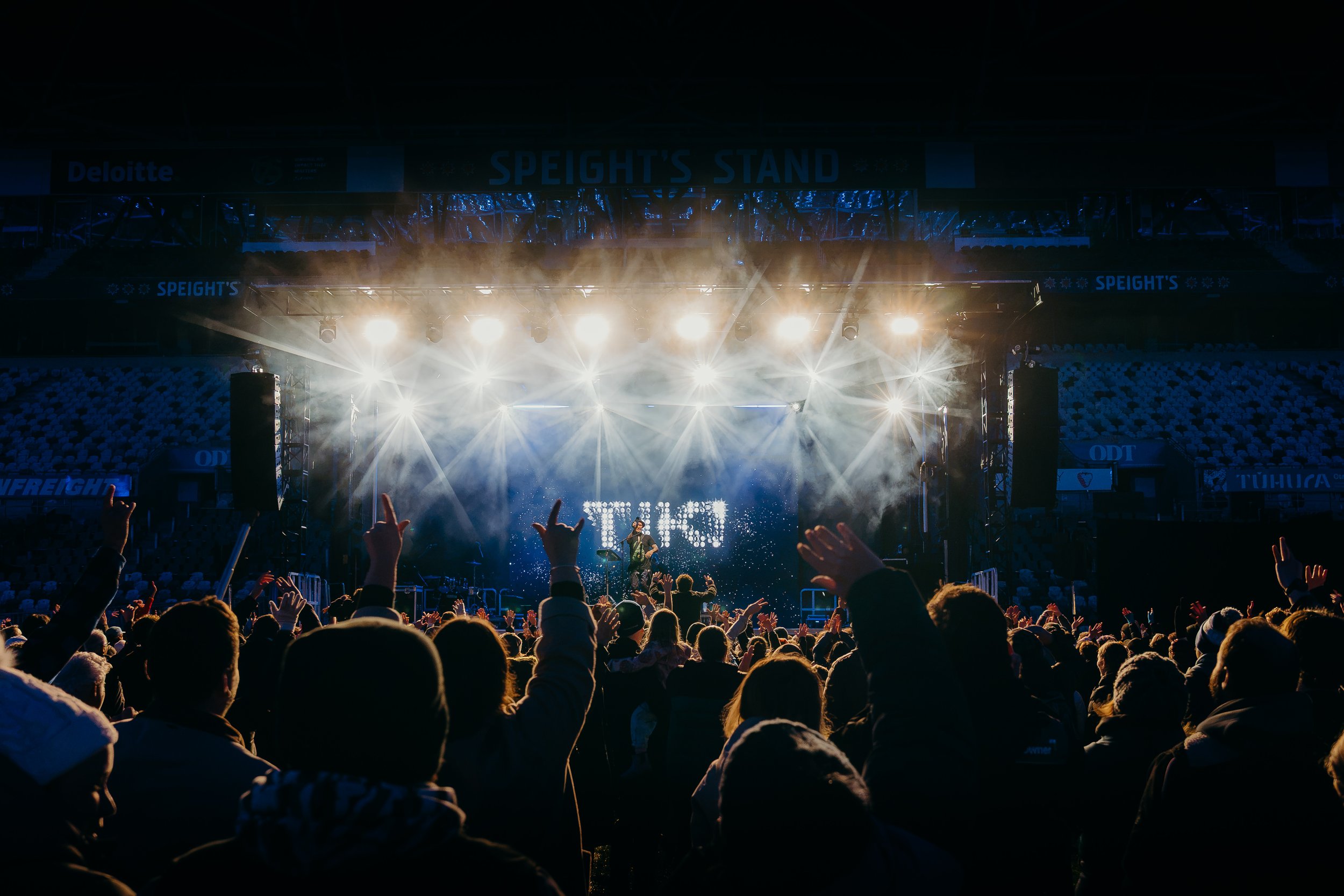

The headline Stage

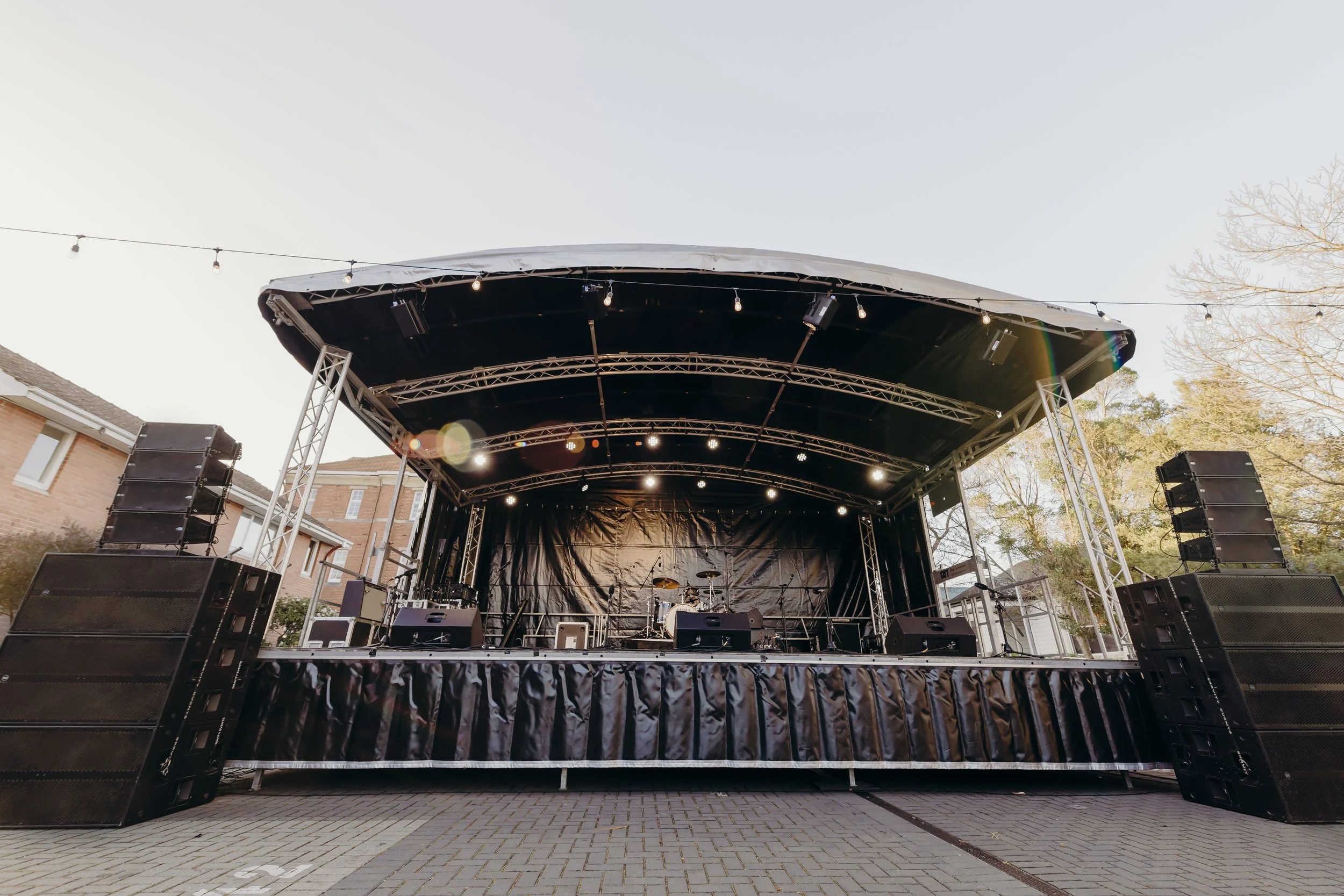

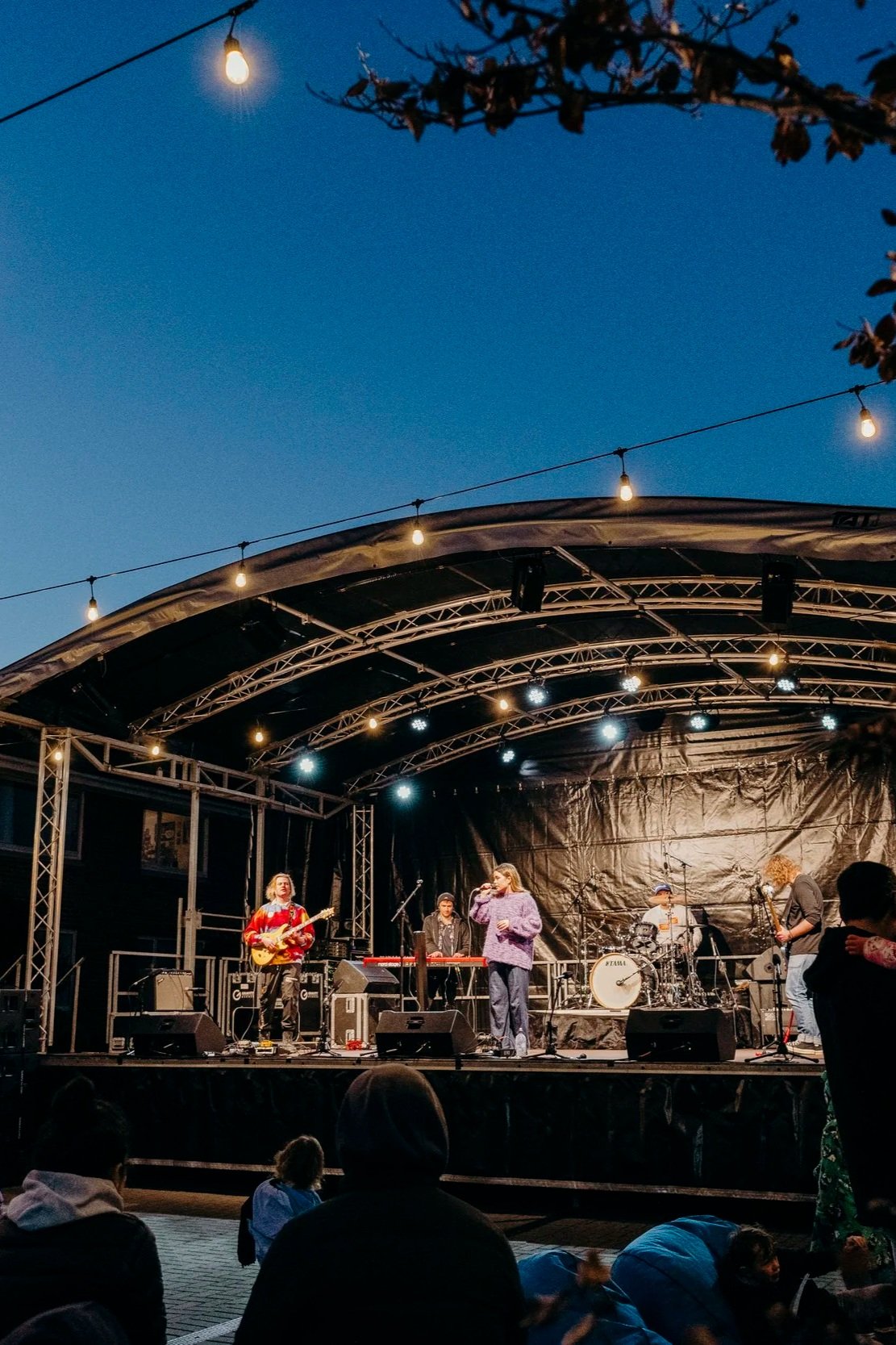

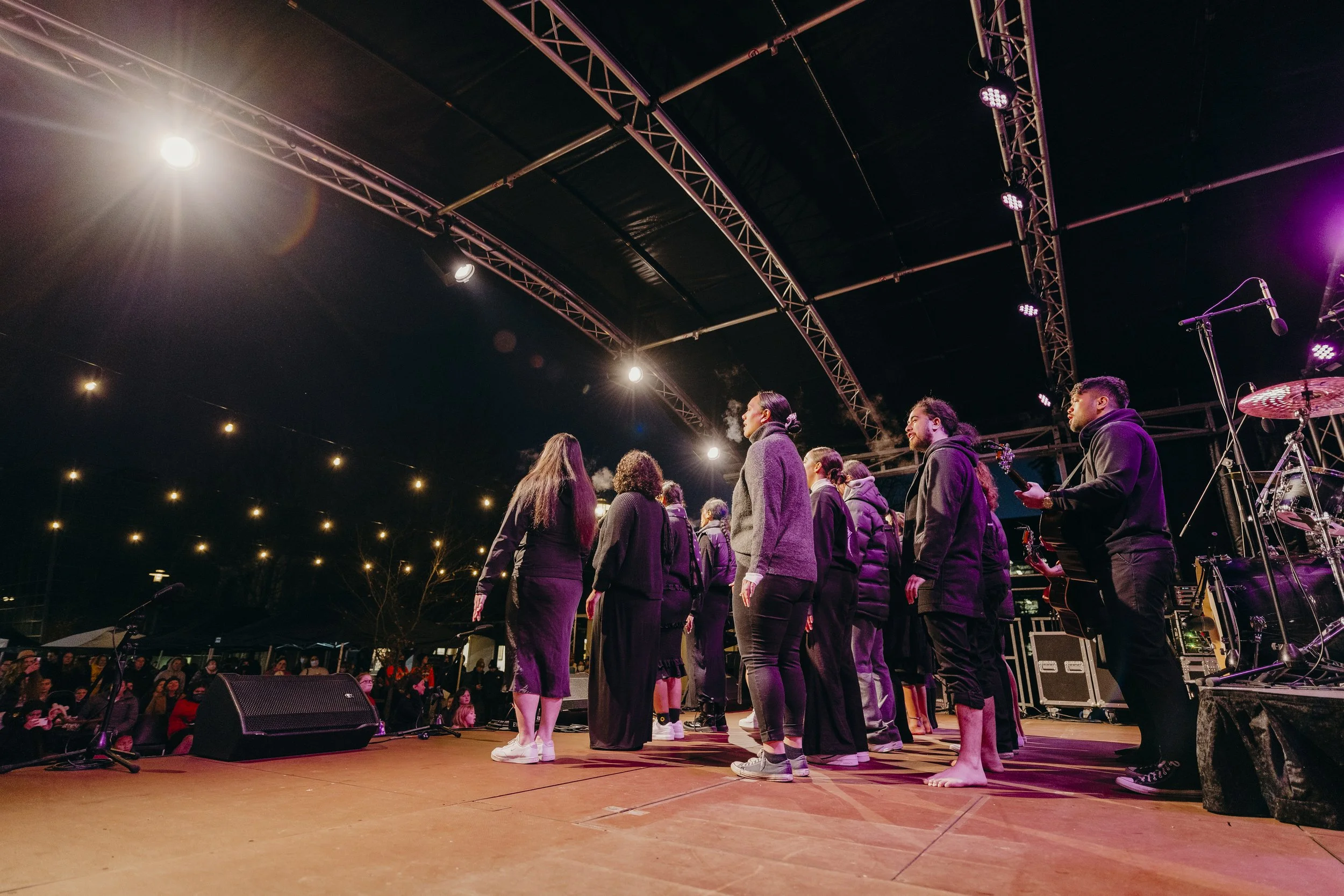

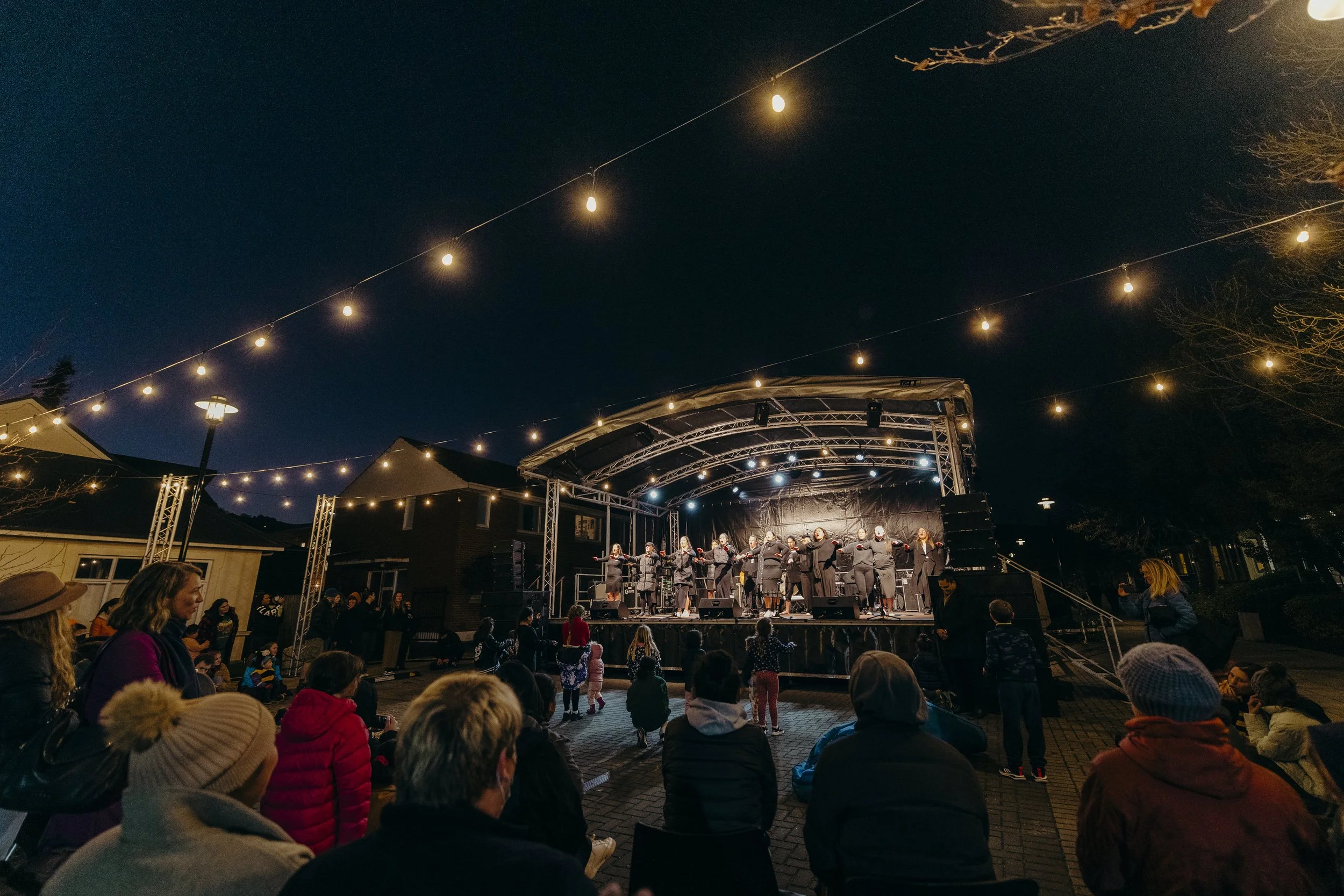

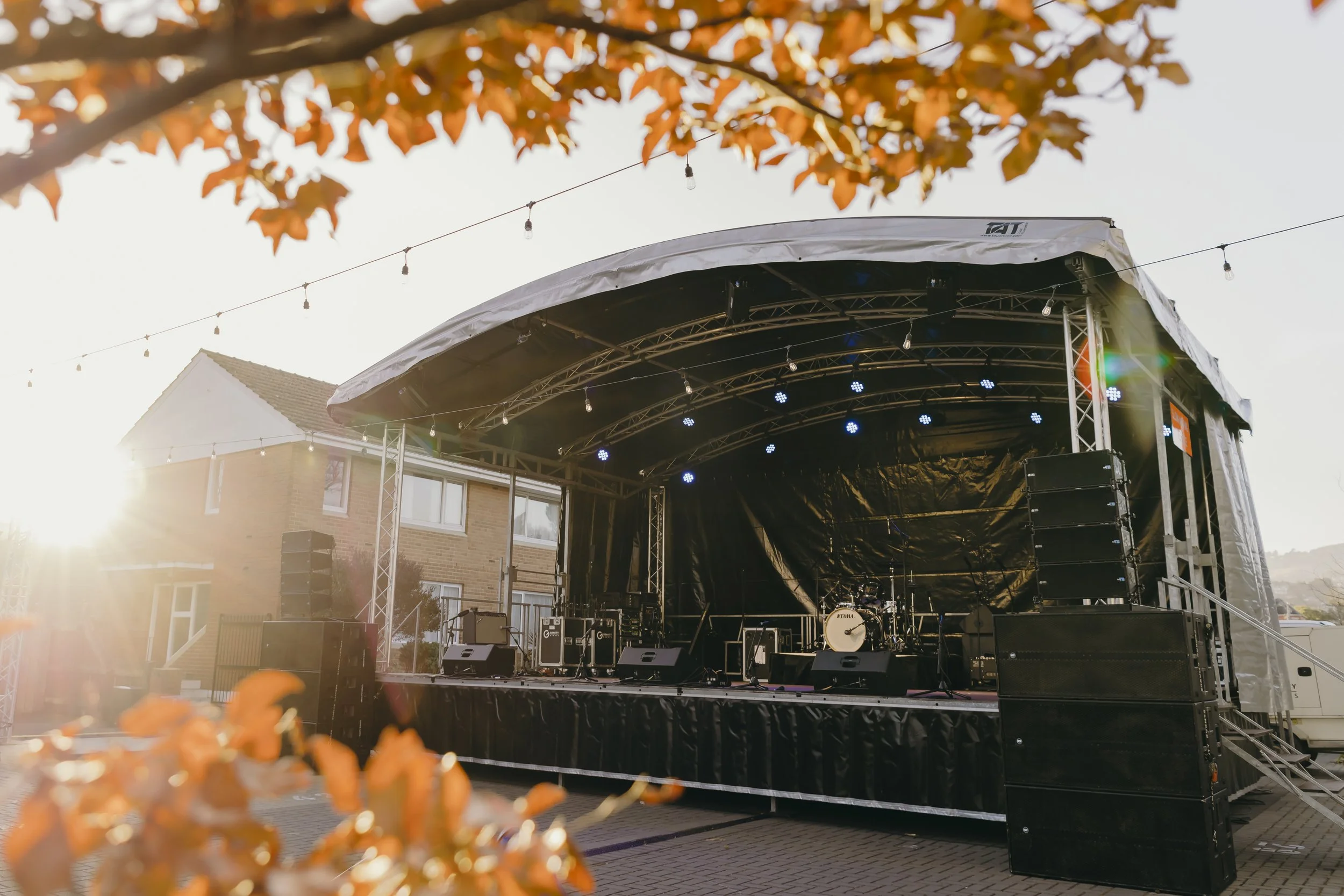

OTAGO University Matariki Event 2022
The support Stage
The support Stage

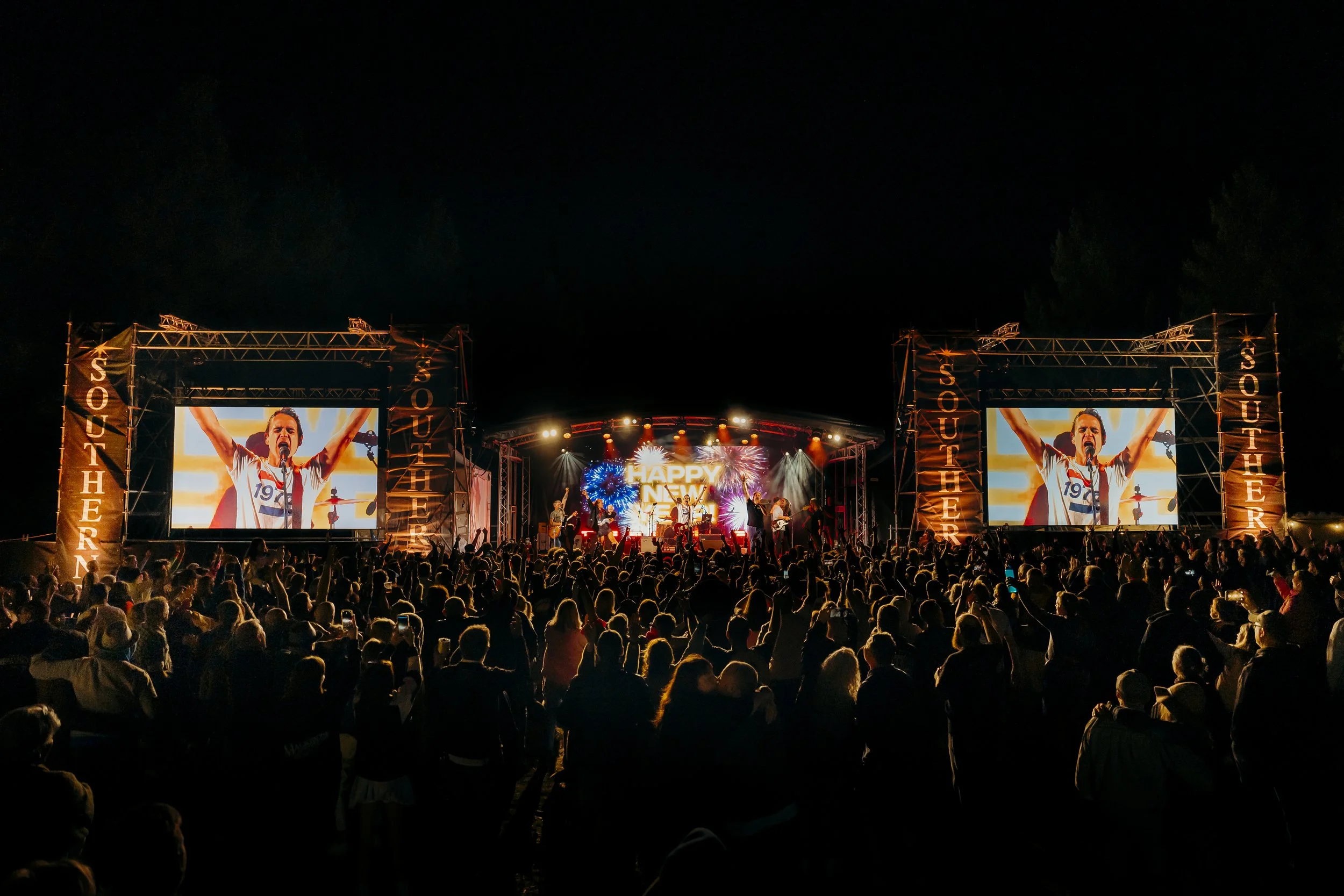

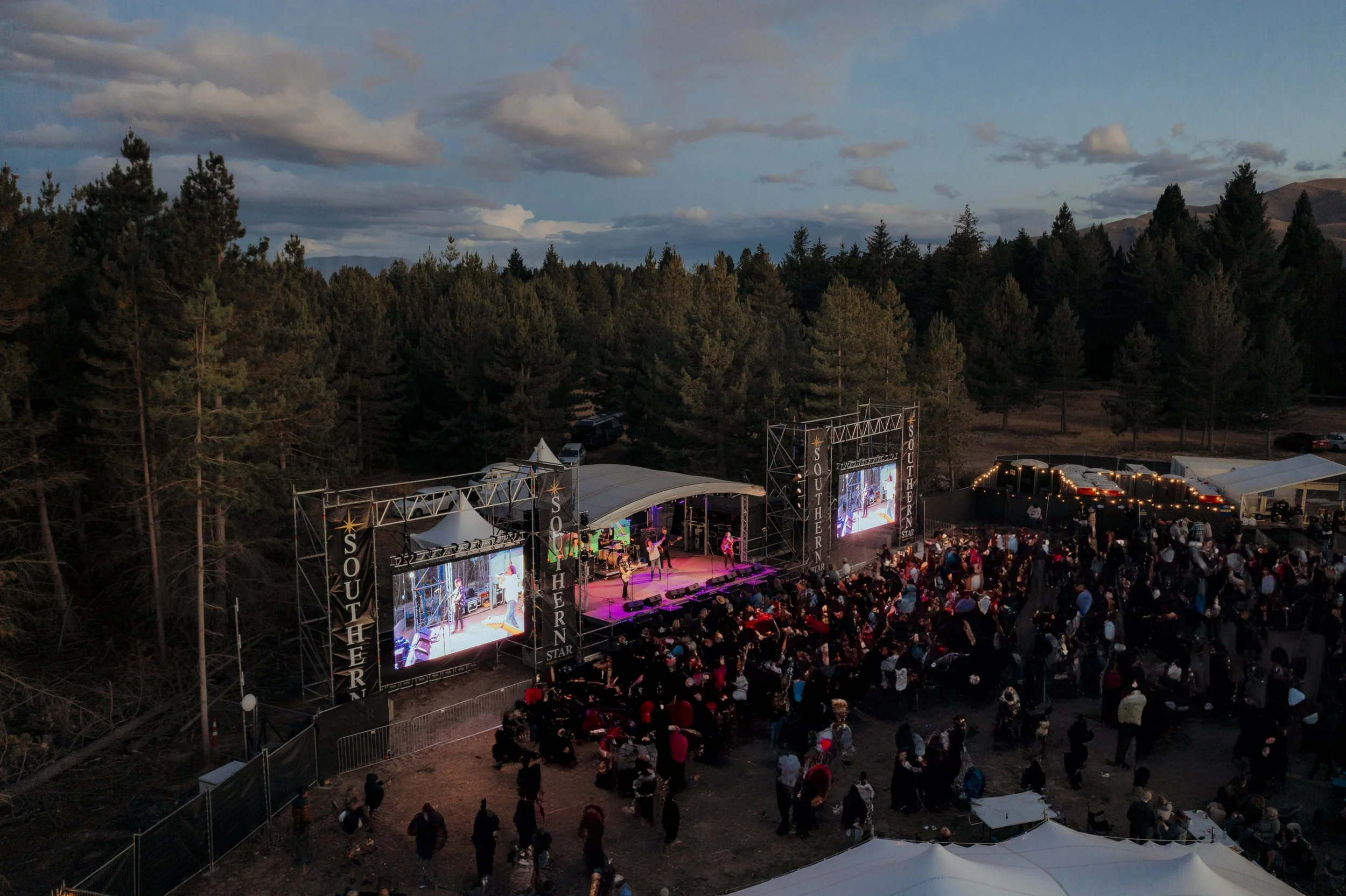

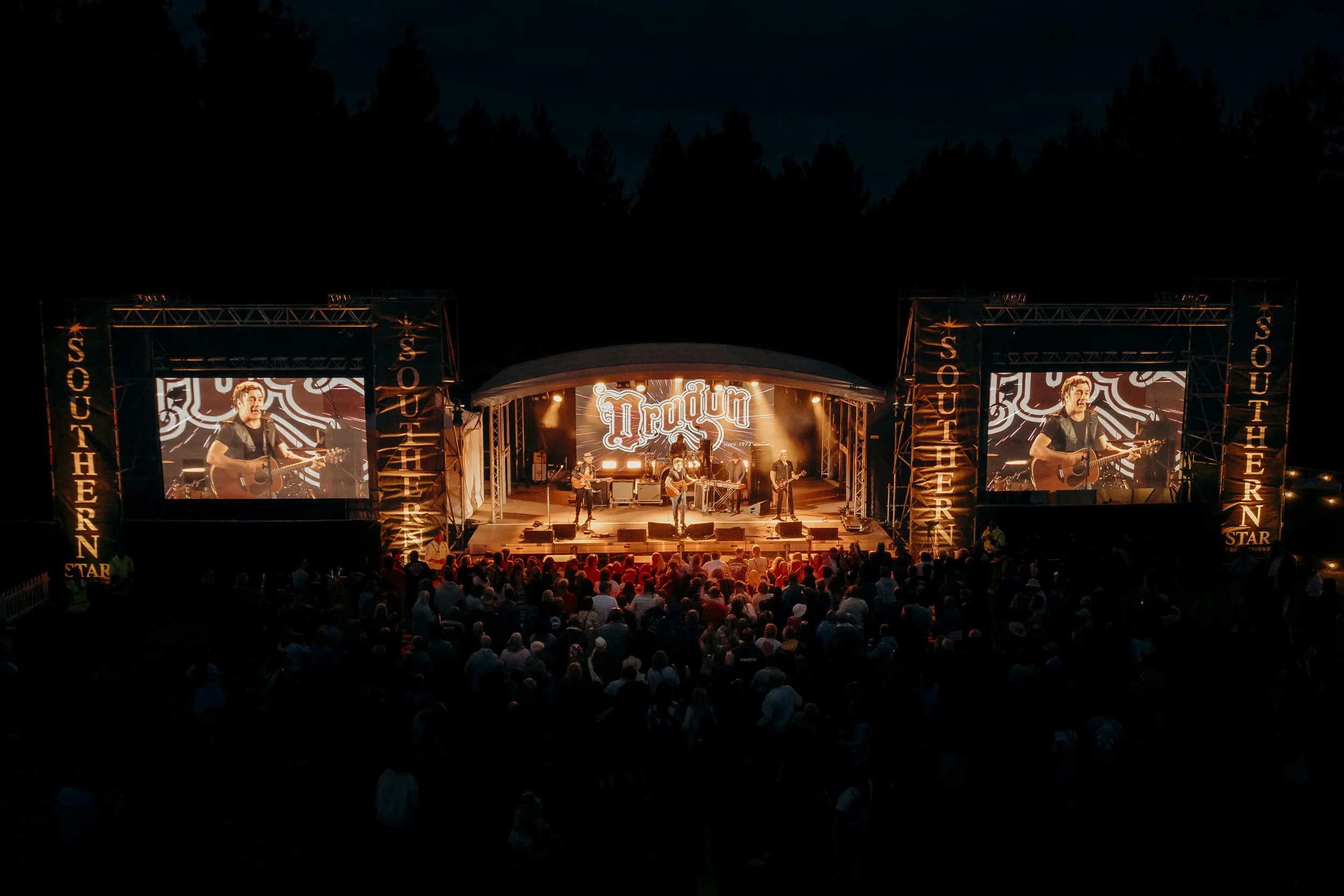

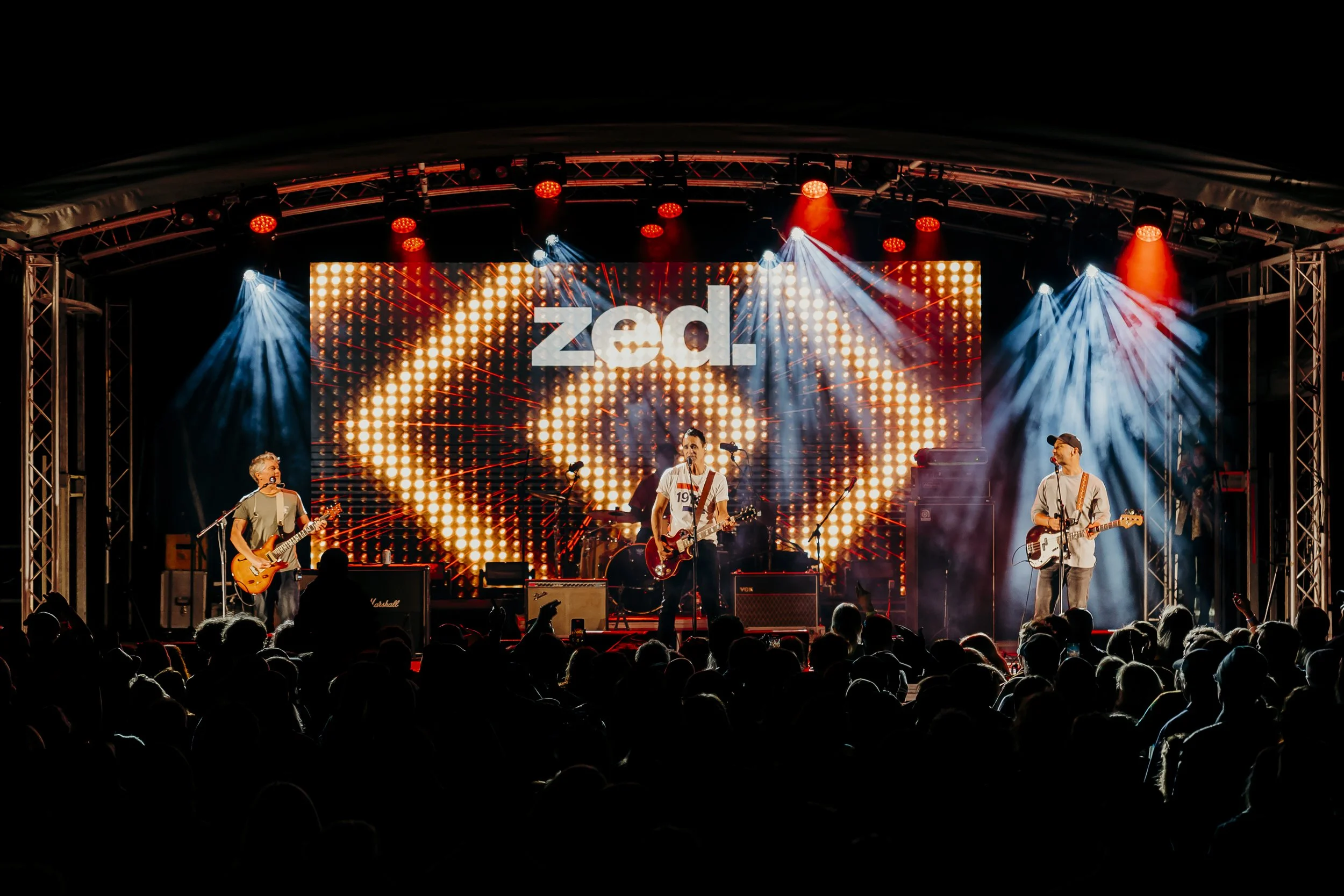

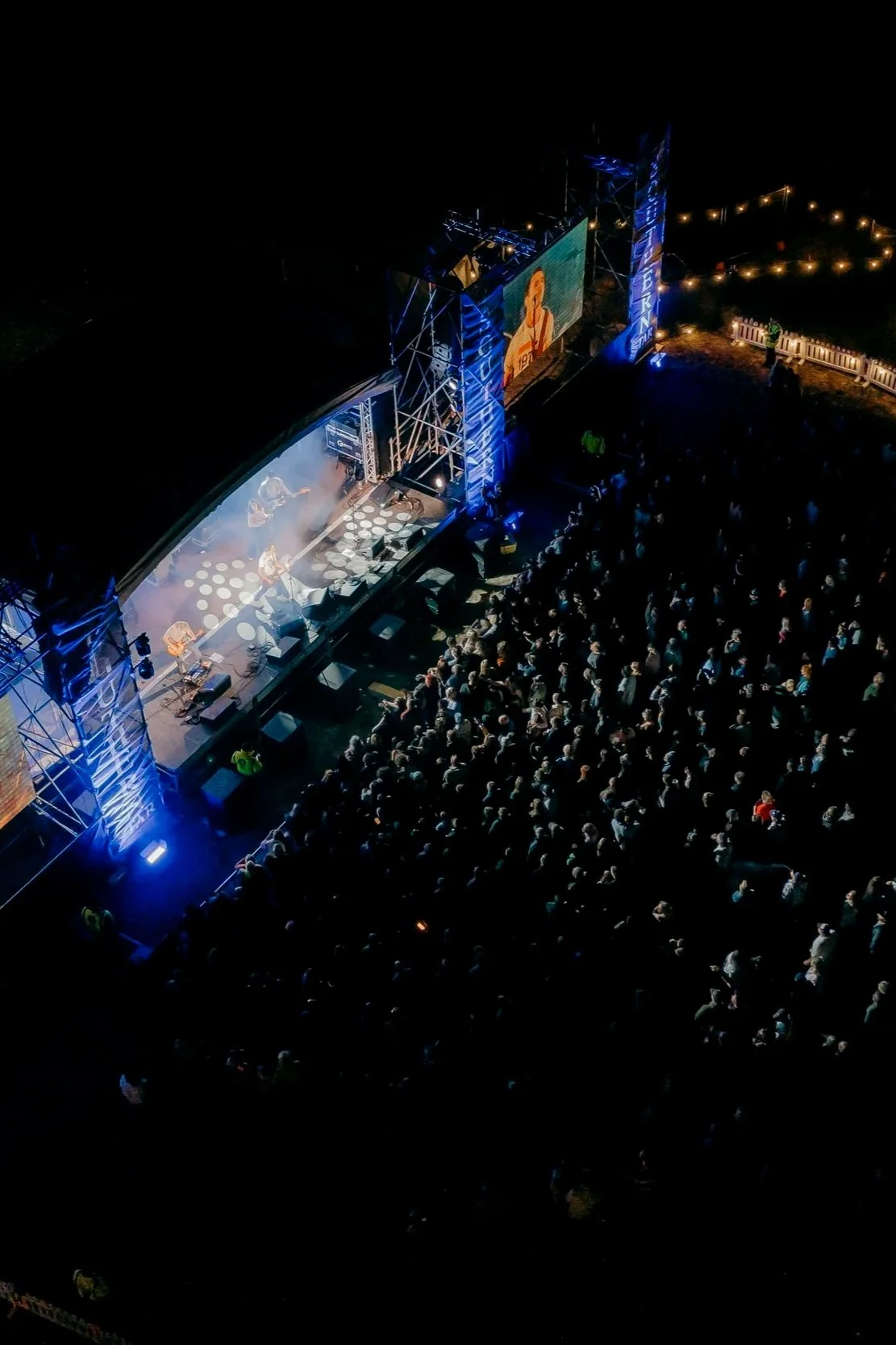

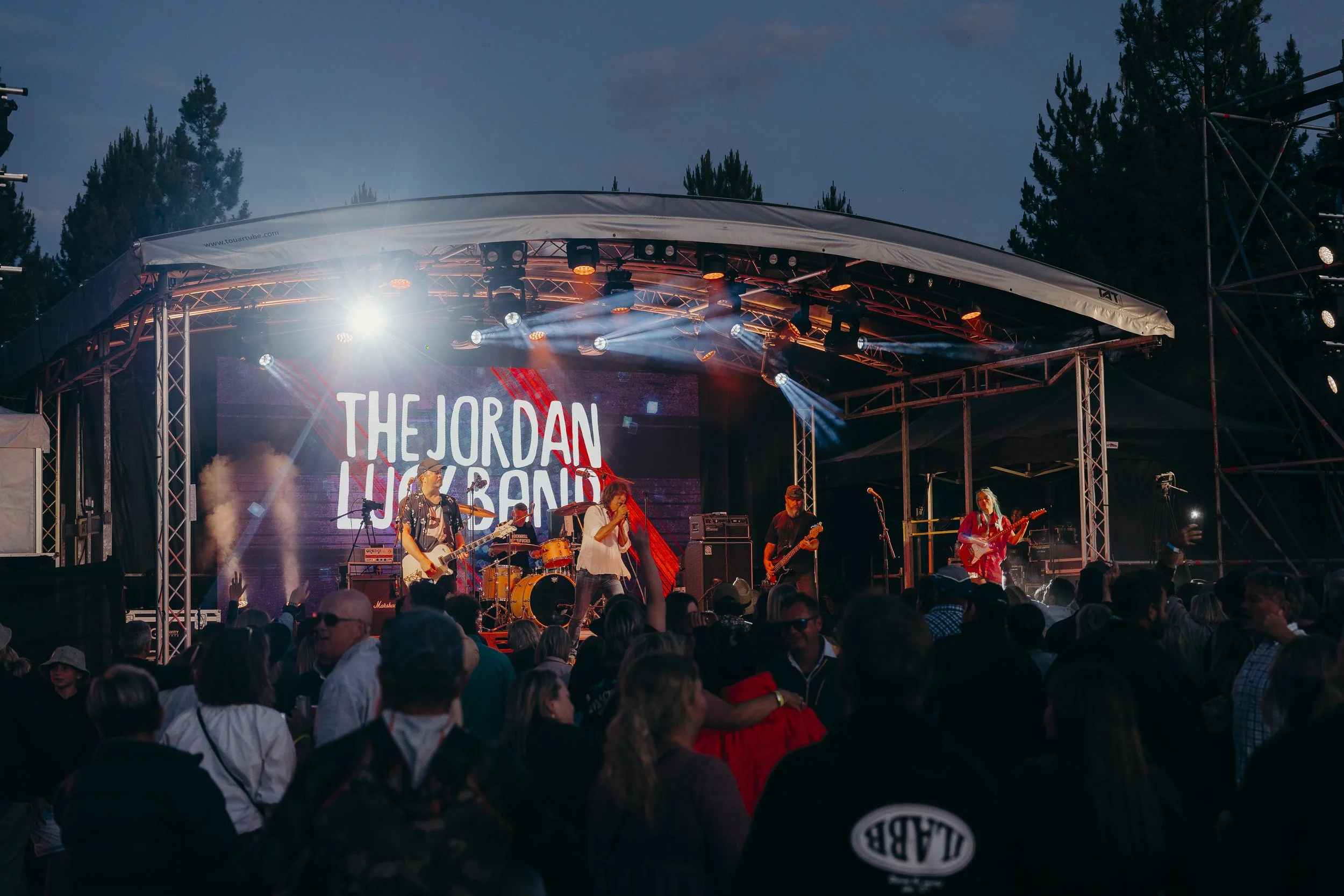

MACKENZIE SUMMER SOUNDS 2024
